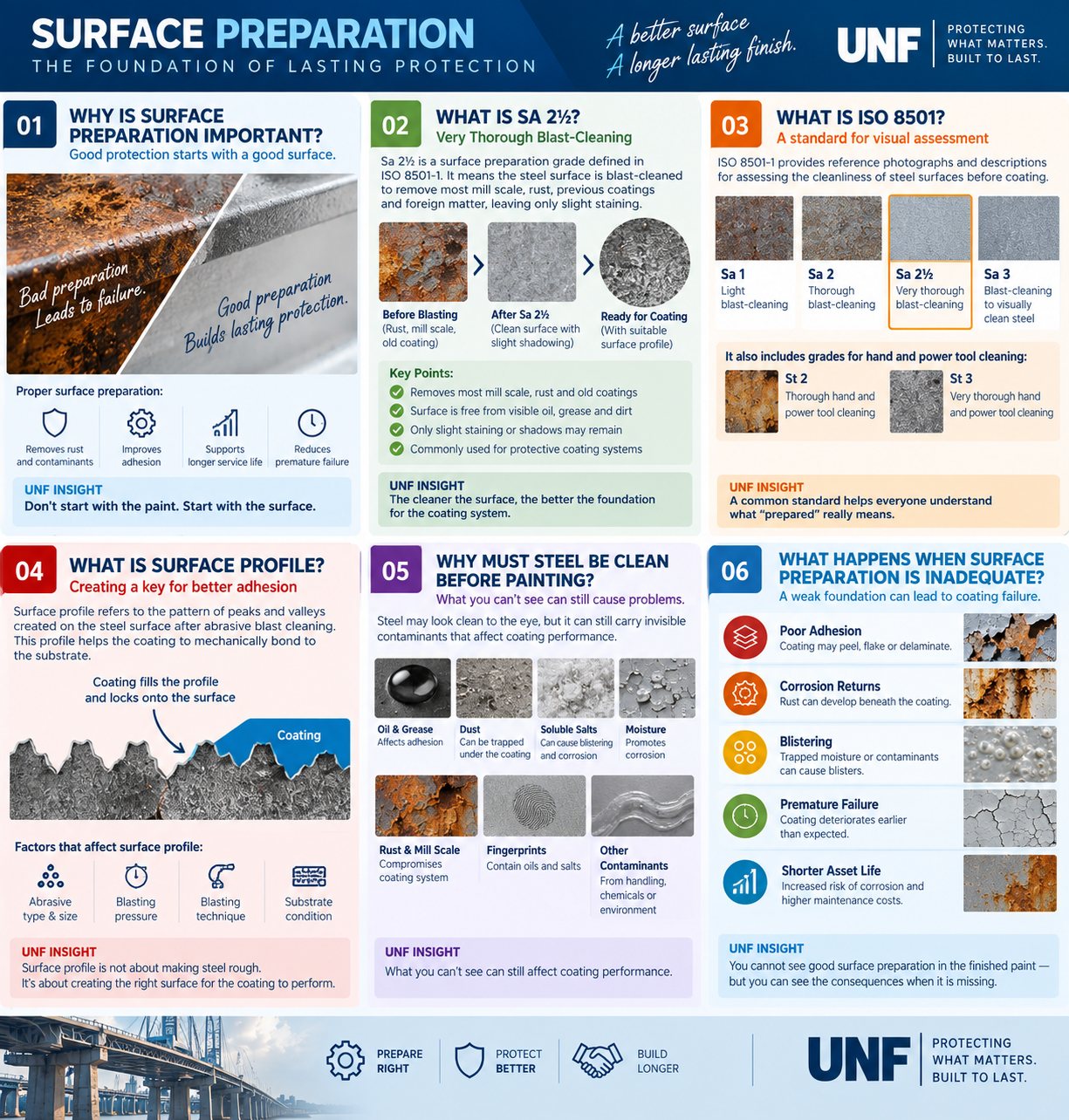

Surface Preparation The foundation of coating performance
A coating can only perform as well as the surface beneath it. Six things worth understanding before the first coat — from Sa 2½ and ISO 8501 to surface profile and what goes wrong when preparation is rushed.
A coating can only perform as well as the surface beneath it.
Before applying any coating, the substrate must be properly assessed, cleaned and prepared to achieve the required level of adhesion and long-term protection.
At UNF, we believe surface preparation is not a step before painting — it is part of the coating system itself.
01Why is surface preparation important?Good protection starts with a good surface
Surface preparation is one of the most important stages of any coating project.
Even a high-performance coating can fail prematurely if it is applied over rust, oil, dust, salts, moisture or other contaminants.
Why does it matter?
Proper surface preparation helps to:
- Remove rust, mill scale and deteriorated coatings
- Remove oil, grease, dust, salts and other contaminants
- Create a suitable surface for coating adhesion
- Provide the required surface profile
- Reduce the risk of premature coating failure
- Support the expected service life of the coating system
What happens without proper preparation?
A coating may initially look acceptable but later develop:
Peeling · Blistering · Rusting · Poor adhesion · Cracking · Premature failure
What does good preparation involve?
The preparation method depends on the substrate and coating system. It may include:
The required preparation level should always be determined according to the coating specification and project requirements.
Don’t start with the paint. Start with the surface.
02What is Sa 2½?Understanding very thorough blast cleaning
Sa 2½ is a commonly specified level of abrasive blast cleaning for steel surfaces. It is defined under ISO 8501-1, which provides visual standards for assessing the preparation of steel substrates before coating.
It is commonly referred to as:
Very Thorough Blast-Cleaning
What does Sa 2½ mean?
At Sa 2½, the steel surface is blast-cleaned to remove:
- Mill scale
- Rust
- Previous coatings
- Foreign matter
- Other visible contaminants
After preparation, the surface should be free from visible oil, grease and dirt, and free from most tightly adherent mill scale, rust and previous coating.
Only limited staining or shadows from tightly adherent residues may remain, within the limits specified by the standard.
Why is Sa 2½ commonly used?
For many protective coating applications, a high level of surface preparation is required to provide a suitable foundation for the coating system.
The required preparation grade, however, should always follow the project specification and coating manufacturer’s requirements.
Sa 2½ is not simply “blasting until the steel looks clean.” The prepared surface should be assessed against the appropriate visual reference standard.
The cleaner and better-prepared the surface, the better the foundation for the coating system.
03What is ISO 8501?A standard for visual assessment of steel surface preparation
ISO 8501-1 is an internationally recognised standard used for the visual assessment of surface cleanliness of steel substrates before coating. It helps coating professionals establish and communicate the required level of surface preparation.
Why is it important?
Without a common reference, terms such as “clean steel” or “well prepared” can mean different things to different people. A recognised preparation grade provides a clearer benchmark.
Common blast-cleaning grades
Some commonly referenced grades include:
What about hand and power tool cleaning?
ISO 8501-1 also provides visual preparation grades for methods such as:
The appropriate grade depends on the coating specification, substrate condition and required performance.
ISO 8501-1 is primarily concerned with visual assessment of surface cleanliness. Other aspects — such as surface profile, dust, soluble salts and environmental conditions — may require separate assessment methods.
A coating specification becomes stronger when everyone understands what “prepared” actually means.
04What is surface profile?Why does blast-cleaned steel need a profile?
After abrasive blast cleaning, the steel surface is no longer completely smooth. The abrasive creates a pattern of peaks and valleys known as the:
Surface Profile
This profile provides a mechanical key that can help the coating achieve good adhesion to the substrate.
Why is surface profile important?
If the profile is too low, the coating may not achieve the required mechanical adhesion.
If the profile is excessively rough, it may create other problems, including difficulty achieving adequate coating coverage over peaks and increased coating consumption.
What determines the profile?
Surface profile can be influenced by:
- Abrasive type
- Abrasive size
- Blasting pressure
- Blasting technique
- Substrate condition
- Blast-cleaning equipment
How is it checked?
Surface profile can be assessed using appropriate measurement methods and instruments, depending on the project specification.
Is there one “correct” profile?
No. The required profile depends on the coating system and manufacturer’s requirements. The objective is not simply to create the roughest possible surface. The objective is to achieve a profile suitable for the specified coating system.
Surface profile is not about making steel rough. It’s about creating the right surface for the coating to perform.
05Why must steel be clean before painting?Clean steel. Better foundation.
Steel may look clean to the eye while still carrying contaminants that can affect coating performance. Dust, oil, grease, salts, moisture and other contaminants can interfere with adhesion and contribute to premature coating deterioration.
What can be found on steel?
Depending on the environment and condition of the substrate, contaminants may include:
Why are soluble salts a concern?
Some salts are not easily visible. They can remain on a surface after exposure to marine or industrial environments and may attract moisture. If not properly addressed, they can contribute to coating problems.
What should happen before painting?
Depending on the specification:
The substrate should meet the required cleanliness and environmental conditions before coating begins.
What you can’t see can still affect coating performance.
06What happens when surface preparation is inadequate?When the foundation is weak, the coating can fail
One of the most common reasons for premature coating problems is inadequate surface preparation. The coating may look perfectly acceptable immediately after application, but defects can appear later.
What can happen?
Poor adhesion
The coating may not bond properly to the substrate.Result: Peeling, flaking or delamination.
Corrosion returns
Remaining rust, mill scale or contaminants can contribute to corrosion beneath the coating.Result: Rust spots, staining and coating breakdown.
Blistering
Contaminants or moisture beneath the coating can contribute to blister formation.Result: Raised bubbles and loss of coating integrity.
Premature coating failure
The coating system may deteriorate earlier than expected.Result: More frequent repairs and higher maintenance requirements.
Shorter asset protection
When the coating fails prematurely, the substrate becomes exposed to the environment.Result: Increased risk of corrosion and deterioration.
How can it be prevented?
A successful coating project should consider the complete preparation process:
You cannot see good surface preparation in the finished paint — but you can see the consequences when it is missing.
Surface preparation checklistBefore the first coat
Before coating begins, ask:
